  • TL-3 Plastic towline (Full closure )
  • TL-3 Plastic towline (Full closure )

    Product Classification:Cable Carrier Series

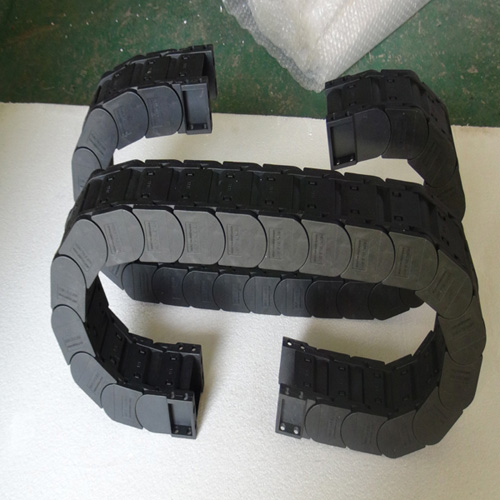

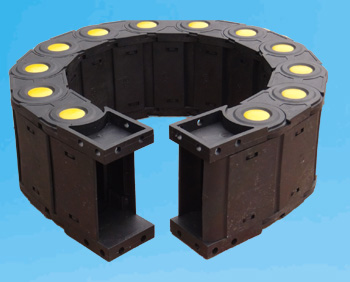

    Characteristic:TL-3 Plastic towline (Full closure ) Features: wear resistance, high temperature resistance, non deformation, low noise, flexible loading and dismantling, long life.

    TL-3 Plastic towline (Full closure ) Features: wear resistance, high temperature resistance, non deformation, low noise, flexible loading and dismantling, long life.

    1.completely closed, can prevent dust and foreign objects into the broken wire.

    2.It is composed of one festival, and the length can be adjusted by itself, and the loading and unloading is simple.

    3.wear-resistant, impact resistance, high strength, light weight, suitable for rapid movement.

    4.The structure is strong and will not be deformed.

    Order parameter

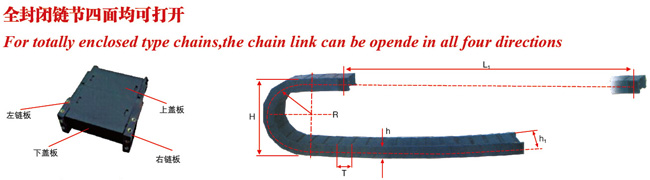

    The chain length of L=L1+2pR+2T L1= run length,  R=bending radius

    The minimum installation height of H=2R+h chain

    T=pitch, h= shape height, h1= outer width



    Specifications and connector parameters:

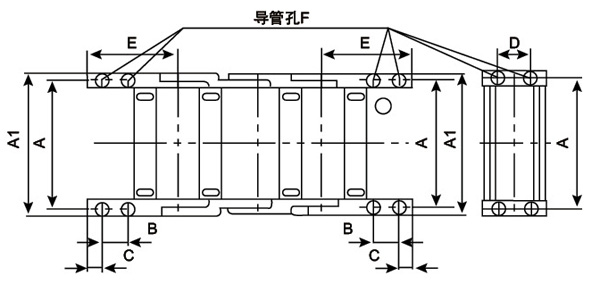

    Inner cavity specification (inner height x width) External specification (outer Height x outer width) Bending radius Pitch Per metre stanza Total heightH Connector parameters
    A1 A B C D E Type
    23x38 35x50 57 31 33 144 55 40   8     Four pieces can be opened
    22x55 35x75   75 45 22   185 79 67   10   8 10 67
    22x70 35x90 94 82
    25x55 40x75   85   45   22 210   80 67   12   9   12   70
    25x70 40x90 95 82
    30x55 45x75   90   50   20 225 80 69   15   10 15 75
    30x70 45x90 95 84
    55x100 75x125       150 200       82       12       375 475 133 117 30       13 30 98
    55x125 75x150 158 142
    55x150 75x175 185 168
    55x200 75x225 233 217
