Telescoping Tapered Metal Covers

Product Classification：Protective Covers

Characteristic：Performance:The telescoping tapered metal cover is a new machine tool accessory jointly developed by our factory and our Italian partners.

Performance:The telescoping tapered metal cover is a new machine tool accessory jointly developed by our factory and our Italian partners.It can be applied with all precision machineries,hydraumatic devices, axles, bars and lead screws of CNC machine tool and machining centers. It is highly resistant against dust, chips and col)lant, thus maintaining machinery precision, prolonging the service life and improving the machinery aesthetical appearance.

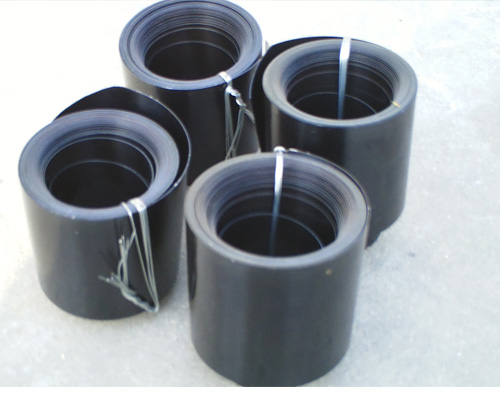

Structure Features:The telescoping tapered metal cover is made of top quality steel strips with thermal treatment. It provides total protection for lead screws, axles and bars. The machinery parts to be protected, whose both ending flanges are installed to the metal covers, are well protected without any contact. The connection ot tne cover ana tne nanges 1s ach1evea w1tn its own precompression elasticity. It's stable, flexible and noiseless in the operation. Its black appearance coincides with most ftange parts of the machinery.

Instructions for Placing Orders:

The telescoping tapered metal cover is customized according to diameters and travels of the lead screws, axles and bars.So please follow the instructions below:

1.Please make selections according to the specifications provided by us.

2.We will manufacture according to the cover diameter D,Lmax and Lmin which are provided by the customers. The prices are calculated with single standard.

Remarks:

1.The flanges shall be prepared by customers, or we can provide the blueprint.

2.Favorable prices upon favorable order quantities.

3.No special requirements for 02 except special size requirements.

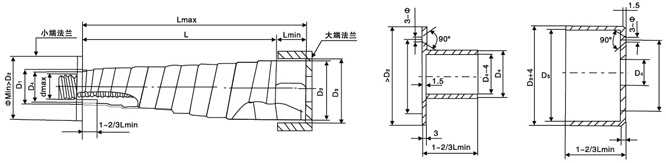

Telescoping Tapered Metal Covers:

LGB	Lmax mm	Lmix mm	D1 mm	D2mm	LGB	Lmax mm	Lmin mm	D1 mm	D2mm Rdr.spec
规格	Lmax mm	Lmix mm	D1 mm	D2mm	Specifications	Lmax mm	Lmin mm	D1 mm	D2mm Rdr.spec
20-250-30 30-250-45	250 250	30 45	20 30	40 41	70-400-80 70-750-100	400 750	80 100	70 70	95 94
30-450-50 30-600-50	450 660	50 50	30 30	50 56	70-1400-120 70-1800-120	1400 1800	120 120	70 70	104 120
40-300-45 40-550-50	300 550	45 50	40 40	54 67	75-400-80 75-600-100	400 600	80 100	75 75	89 95
40-800-80 40-950-80	800 950	80 80	40 40	65 69	75-900-120 75-1200-120	900 1200	120 120	75 75	97 104
45-550-50 45-700-80	550 700	50 80	45 45	73 68	75-1600-1100 80-400-80	1600 400	110 80	75 80	115 94
45-900-100 45-1000-100	900 1000	100 100	45 45	70 73	80-600-120 80-900-110	600 900	120 110	80 80	97 105
50-500-50 50-700-80	500 700	50 80	50 50	72 70	80-1200-120 80-1400-120	1200 1400	120 120	80 80	115 120
50-900-100 45-1200-100	900 1200	100 100	50 50	77 84	85-400-80 85-600-100	400 600	80 100	85 85	100 105
55-350-50 55-550-80	350 550	50 80	55 55	72 72	85-800-125 85-1000-125	800 1000	125 125	85 85	106 126
55-800-80 55-1000-120	800 1000	80 120	55 55	78 77	85-1200-125 90-400-100	1200 400	125 100	85 90	132 105
55-1400-110 60-400-50	1400 400	110 50	55 60	86 79	90-600-100 90-800-125	600 800	100 125	90 90	111 111
60-600-80 60-900-100	600 900	80 100	60 60	78 87	90-900-125 90-1200-125	900 1200	125 125	90 90	127 137
60-1200-120 60-1600-120	1200 1600	120 120	60 60	88 98	95-400-100 95-600-125	400 600	100 125	95 95	110 112
65-400-50 65-700-80	400 700	50 80	65 65	85 87	95-800-125 95-1000-125	800 1000	125 125	95 95	130 137
65-1000-100 65-1400-110	1000 1400	100 110	65 65	95 99	100-600-120 100-800-125	600 800	120 125	100 100	118 135
65-1800-10	1800	110	65	109	120-600-125	600	125	120	150
